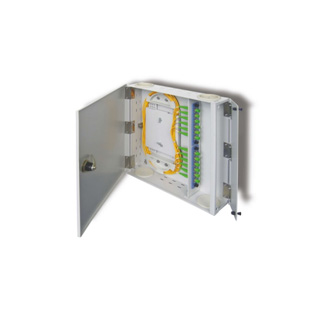

WALL MOUNT INDOOR BOX 12FC

Wall mount Housing, divided into two sections, for splicing as well as patching. Capacity up to 12 FC



Type

Dimension (mm)

HxWxD		 Capacity FC
 I 340x300x70 12

The box is available in two types:

* Pigtail splice: for splicing of pigtails on cables with inside patch field
* cable splice: for splicing of cable to cable (through splicing)
Environmental Protection :  IP50 dust-proof



Specification

  • Features

    • Compact aluminum body with electrostatic spraying surface, light structure
    • Side door and main door could be opened to arrange the fiber
    • Cable Entries from top and bottom
    • Six-pack adapter panels mounted in the front board are selectable with FC type
    • Splicing module is removable and suitable for field operation and maintenance
    • Unique plastic retainer clips for optical fibers are attached, protecting the spliced fibers sufficiently

Usage

  • Application involves building and floor distributor or Fiber optic distribution where distribution racks are not necessary or possible

Technical Data

Item

Parameter
Insertion Loss
Return Loss
Repeatability
Durability
Operating Temperature
Storage Temperature
