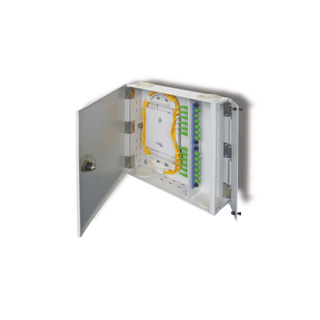

Wall mount Housing, divided into two sections, for splicing as well as patching. Capacity up to 24 LC.
|
Type |
Dimension (mm) |
Capacity LC |
|
I |
340×300×70 |
12 |
|
II |
340×300×90 |
24 |
The box is available in two types:
* Pigtail splice: for splicing of pigtails on cables with inside patch field
* cable splice: for splicing of cable to cable (through splicing)
Environmental Protection : IP50 dust-proof
Features
• Compact aluminum body with electrostatic spraying surface, light structure
• Side door and main door could be opened to arrange the fiber
• Cable Entries from top and bottom
• Six-pack adapter panels mounted in the front board are selectable with LC type
• Splicing module is removable and suitable for field operation and maintenance
• Unique plastic retainer clips for optical fibers are attached, protecting the spliced fibers sufficiently
Application involves building and floor distributor or Fiber optic distribution where distribution racks are not necessary or possible.
| Item |
Parameter |
|---|---|
| Insertion Loss | |
| Return Loss | |
| Repeatability |
| Durability | ||
|---|---|---|
| Operating Temperature | ||
| Storage Temperature |
