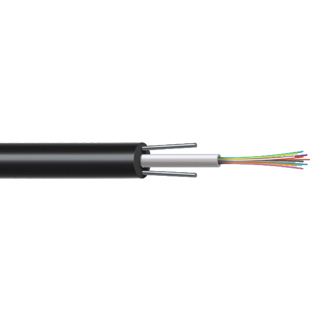

CENTRAL LOOSE TUBE ARMOURED CABLE

Cable Construction Details

  • Up to 48 enhanced low water peak single mode fibres in full compliance with ITU-T-G.652.D (also available with G655 / G656 / G657 SM Fibre and OM1 / OM2 / OM3 & M4 MM Fibre)
  • Metallic anti-buckling steel rod as strength member.
  • Embedded in outer sheath (also available with non metallic strength member FRP rod)
  • Loose buffer tube fully filled and centrally placed in the cable
  • Water blocking tape wrapping
  • Electrolyte chrome plated, corrugated steel tape armoured
  • UV Stablized PE Outer sheath, black (also available with FR PVC & HFFR

Specification

  • FIBRE COUNT

    DIAMETER (mm)
    Nominal

    WEIGHT (Kg./Km)
    Nominal

    TENSILE
    STRENGTH (N)

    BENDING
    RADIUS (mm)

    TEMPERATURE RANGE
    (IEC 60794-1-2-F1)

    Installation

    Operating

    Temporary

    Permanent

    Installation

    Operating

    12F

    8.3

    75

    1500

    750

    15D

    20D

    -100 to +500 C

    -400 to +700 C

    24F

    9.8

    100

    1500

    750

    15D

    20D

    -100 to +500 C

    -400 to +700 C

    48F

    11.3

    130

    1500

    750

    15D

    20D

    -100 to +500 C

    -400 to +700 C

Usage

Technical Data

Item

Parameter
Insertion Loss
Return Loss
Repeatability
Durability
Operating Temperature
Storage Temperature
