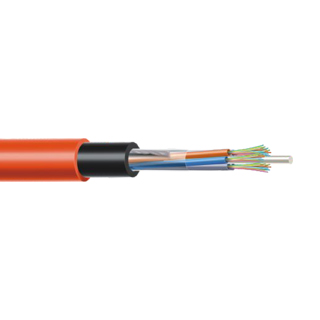

MULTI LOOSE TUBE DOUBLE SHEATH DUCTED CABLE

Cable Construction Details

  • Up to 144 enhance low water peak single mode fibres in full compliance with ITU-T-G.652.D (also available with G655 / G656 / G657 SM Fibre and OM1 / OM2 / OM3 & OM4 MM Fibre)
  • 2/4/6/8/12 fibre per tube combinations are available in 6/8/12 element construction
  • Non metallic anti-buckling FRP rod as Central Strength Member (also available with Steel rod)
  • Loose buffer tubes fully filled , S-Z Stranded
  • Cable core fully filled with jelly (also available in dry core)
  • Glass yarn can be used as peripheral strength member
  • S-Z core wrapped with polyester tape / water swellable tape
  • UV Stablized HDPE inner sheath, Black
  • Insect & termite resistant PA-12 outer sheath, Orange

Specification

  • FIBRE COUNT

    DIAMETER (mm)
    Nominal

    WEIGHT (Kg./Km)
    Nominal

    TENSILE
    STRENGTH (N)

    BENDING
    RADIUS (mm)

    TEMPERATURE RANGE
    (IEC 60794-1-2-F1)

    Installation

    Operating

    Temporary

    Permanent

    Installation

    Operating

    UPTO 48F

    10.2

    90

    1500

    750

    15D

    20D

    -100 to +500 C

    -400 to +700 C

    72F

    10.6

    95

    1500

    750

    15D

    20D

    -100 to +500 C

    -400 to +700 C

    96F

    11.9

    120

    1500

    750

    15D

    20D

    -100 to +500 C

    -400 to +700 C

    144F

    14.4

    170

    2000

    1000

    15D

    20D

    -100 to +500 C

    -400 to +700 C

Usage

Technical Data

Item

Parameter
Insertion Loss
Return Loss
Repeatability
Durability
Operating Temperature
Storage Temperature
