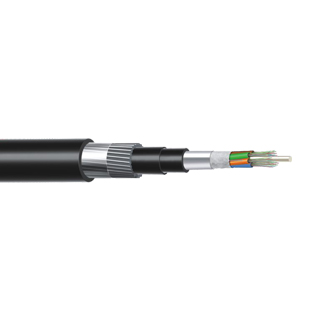

Cable Construction Details

• Up to 144 enhance low water peak single mode fibres in full compliance with ITU-T-G.652.D (also available with G655 / G656 / G657 SM Fibre and OM1 / OM2 / OM3 & OM4 MM Fibre)
• Phosphate coated metallic anti-buckling steel rod as central
• strength member (also available with non metallic strength member, FRP rod)
• 2/4/6/8/12 fibre per tube combinations are available in 5/6/8/12 element constructions
• Loose buffer tubes fully filled S-Z Stranded
• Cable core fully filled with jelly
• PE coated Aluminium foil as moisture barrier
• UV Stablized PE inner sheath, black
• Galvanised Steel wire armour, wrapped with polyester tape
• UV stabilized HDPE outer sheath, black (also available with FR PVC& HFFR)
