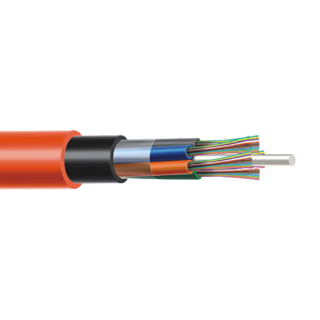

MULTI LOOSE TUBE RIBBON TYPE CABLE

Cable Construction Details



  • Up to 576 enhance low water peak single mode fibres in full compliance with ITU-T-G.652.D in 4/8/12 Fibre Ribbon (also available with G655 / G656 / G657 SM Fibre and OM1 / OM2 / OM3 & OM4 MM Fibre)
  • Non metallic and anti-buckling FRP rod as Central Strength Member
  • Loose buffer tubes fully filled, S-Z Stranded
  • Cable core is fully filled with Thixotropic Jelly (also available in dry core design)
  • S-Z core wrapped with polyester tape/water swellable tape
  • UV Stablized PE Inner sheath, Black
  • Insect & termite resistance PA-12 outer sheath, Orange

Specification

  • FIBRE COUNT

    DIAMETER (mm)
    Nominal

    WEIGHT (Kg./Km)
    Nominal

    TENSILE
    STRENGTH (N)

    BENDING
    RADIUS (mm)

    TEMPERATURE RANGE
    (IEC 60794-1-2-F1)

    Installation

    Operating

    Temporary

    Permanent

    Installation

    Operating

    UPTO 96F

    19.0

    280

    3000

    1500

    15D

    20D

    -10oto+50oC

    -40oto+70oC

    144F

    20.5

    340

    3000

    1500

    15D

    20D

    -10oto+50oC

    -40oto+70oC

    288F

    24.0

    525

    3000

    1500

    15D

    20D

    -10oto+50oC

    -40oto+70oC

    576F

    30.0

    740

    3000

    1500

    15D

    20D

    -10oto+50oC

    -40oto+70oC

Usage

Technical Data

Item

Parameter
Insertion Loss
Return Loss
Repeatability
Durability
Operating Temperature
Storage Temperature
