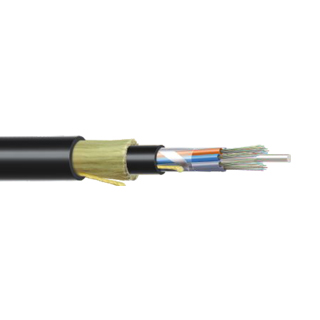

ARIEL ADSS CABLE

Cable Construction Details

  • Up to 144 enhance low water peak single mode fibres in full compliance with ITU-T-G.652.D (also available with G655 / G656 / G657 SM Fibre and OM1 / OM2 / OM3 & OM4 MM Fibre)
  • Non metallic anti-buckling FRP rod as Central Strength Member
  • Loose buffer tubes fully filled, S-Z Stranded
  • Cable core fully filled (also available in dry core design)
  • Cable core is wrapped with Polyester Tape/water swellable tape
  • UV Stablized PE inner sheath, Black
  • High modulus, Aramid yarn peripheral strength member
  • UV Stablized PE Outer sheath, Orange

Specification

  • FIBRE COUNT

    DIAMETER (mm)
    Nominal

    WEIGHT (Kg./Km)
    Nominal

    TENSILE
    STRENGTH (N)

    BENDING
    RADIUS (mm)

    TEMPERATURE RANGE
    (IEC 60794-1-2-F1)

    Installation

    Operating

    Temporary

    Permanent

    Installation

    Operating

    UPTO 48F

    12.5

    125

    5000

    2000

    15D

    20D

    -10oto+50oC

    -40oto+70oC

    UPTO 72F

    13.5

    145

    5000

    2000

    15D

    20D

    -10oto+50oC

    -40oto+70oC

    96F

    15.0

    180

    5000

    2000

    15D

    20D

    -10oto+50oC

    -40oto+70oC

    144F

    18.0

    250

    5000

    2000

    15D

    20D

    -10oto+50oC

    -40oto+70oC



Usage

Technical Data

Item

Parameter
Insertion Loss
Return Loss
Repeatability
Durability
Operating Temperature
Storage Temperature
