Indoor Breakout Single Sheath Cable, up to 48 fibers

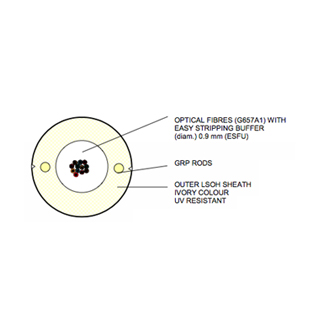

The cable consists of 12, 24, 36 and 48 Single Mode optical fibers with tight buffer protection, made of an easy stripping compound, up to 900 microns. Available in G657A1 or A2 based on request. The fibers are protected by a flame retardant LSOH (Low Smoke Zero Halogen) sheath. During the sheathing process, two Glass Reinforced Plastic (GRP) rods are included. Flame retardant according To IEC 60332-1.
|
Fiber Count |
12 |
24 |
36 |
48 |
|
Cable Diameter (nominal) |
8.5mm |
12mm |
14.5mm |
14.5mm |
|
Cable Weight (nominal) |
68 kg/km |
135 kg/km |
175 kg/km |
190 kg/km |
|
Minimum Bend Radius (operation static) |
85mm |
120mm |
150mm |
150mm |
|
Minimum Bend Radius (dynamic) |
170mm |
240mm |
300mm |
300mm |
|
Tensile Strength (installation) |
150 N |
300 N |
300 N |
300 N |
|
Crush Resistance (100 mm) |
500 N |
|||
|
Impact Resistance (300 mm radius) |
5 N m |
|||
|
Temperature Performance |
- |
|||
| Item |
Parameter |
|---|---|
| Insertion Loss | |
| Return Loss | |
| Repeatability |
| Durability | ||
|---|---|---|
| Operating Temperature | ||
| Storage Temperature |
